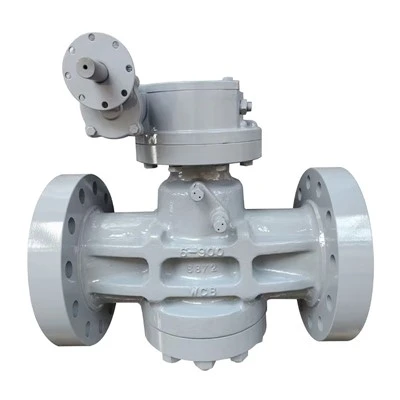

The Full Port Lubricated Plug Valve is a quarter-turn isolation valve with a full-bore flow passage that minimizes internal flow restriction. Its lubricated plug construction supports low-friction operation and sealing performance for pipeline isolation under specified pressure, temperature, and service conditions.
Technical Specifications
|
Parameter |
Specification |
|
Valve Type |
Full Port Lubricated Plug Valve |
|
Nominal Size |
1–24 in |
|
Port Type |
Full Port |
|
Pressure Rating |
Up to Class 600 |
|
Operating Temperature |
−20°C to 400°C, subject to material and pressure-temperature rating |
|
Bonnet Design |
BC |
|
Body / Plug Material |
Forged carbon steel, stainless steel, or corrosion-resistant alloys |
|
End Connections |
Flanged, butt-weld, or threaded |
|
Operation / Actuation |
Manual lever, gear-operated, or electric-actuated |
|
Design Standard |
API 599 / API 6D, as applicable |
|
Fire-Safe |
API 607 |
|
Face-to-Face / End-to-End |
ASME B16.10 |
|
Connecting Flange |
ASME B16.5 |
|
Test & Inspection |
API 598 / API 6D |
Lubricated Sealing & Maintenance
Lubricant Replenishment
A grease port allows lubricant to be replenished without removing the valve from the pipeline. Lubricant type and replenishment requirements depend on the valve configuration and service conditions.
Lubricated Plug
Lubrication reduces friction between the plug and sealing surfaces during operation and supports the sealing interface. The lubricant can be specified according to the required temperature and medium conditions.
Typical Service Conditions
Oil & Hydrocarbon Pipelines
Crude oil and hydrocarbon transmission lines requiring full-port isolation.
Water Transmission Systems
Water transmission and municipal pipelines where a full-bore passage is preferred.
Chemical Process Lines
Chemical services compatible with the valve materials and operating limits.
Petrochemical Systems
Petrochemical process and transfer lines requiring lubricated plug isolation.
Configuration & Customization
Material Selection
Body and plug materials can be specified according to the process medium, temperature, pressure class, and project requirements.
Connection & Actuation
End connections and actuation can be specified according to the piping arrangement, valve size, operating torque, and control requirements.
Project Requirements
Customer drawings, dimensional requirements, actuator details, and other project-specific specifications can be reviewed before production.
Inspection & Documentation
Visual & Dimensional Inspection
Valve construction, key dimensions, end connections, and nameplate details are checked against drawings and applicable standards.
Pressure Testing
Shell and seat leakage tests are performed according to API 598 or API 6D, as applicable.
Operation & Lubrication Check
Plug operation, lubrication points, and lubricant injection function are checked before shipment.
Fire-Safe Verification
API 607 fire-safe requirements are applied where specified for the valve configuration.
Inspection Documentation:
Material certificates, pressure test records, dimensional inspection records, and other specified inspection documents can be supplied with the order.
FAQ
Q: What is the MOQ for Full Port Lubricated Plug Valves?
A: MOQ depends on valve size, material, pressure class, and order requirements. The applicable quantity is confirmed with the quotation.
Q: What is the typical production lead time?
A: Standard configurations generally require around 4–8 weeks. Large-size, special-material, or project-specific valves may require additional time.
Q: What inspection documents are available?
A: Material certificates, pressure test records, dimensional inspection records, and other required inspection documents can be provided according to the order requirements.
Q: Are replacement lubrication components available?
A: Applicable lubrication and sealing components can be supplied as replacement parts according to the valve configuration.
Q: How are the valves packaged for export shipment?
A: Valves are packaged according to their size, weight, configuration, and shipping requirements. Export packaging can be arranged for overseas delivery.
Q: Can factory assembly be provided for actuated valves?
A: Yes. Valve and actuator assembly can be completed and checked at the factory before shipment.
Q: Can customer-specific nameplates or markings be provided?
A: Yes. Nameplate information, tagging, and identification requirements can be confirmed with the order.
Q: What payment terms are available?
A: The standard payment term is 30% T/T in advance and 70% before shipment. Other terms can be discussed for specific orders.
Q: How quickly can you respond to technical and quotation inquiries?
A: Technical and quotation inquiries can generally be responded to within 24 hours.
